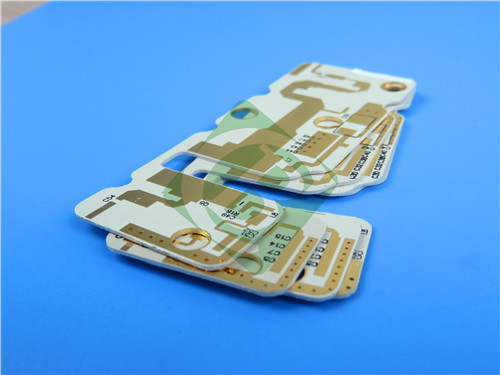

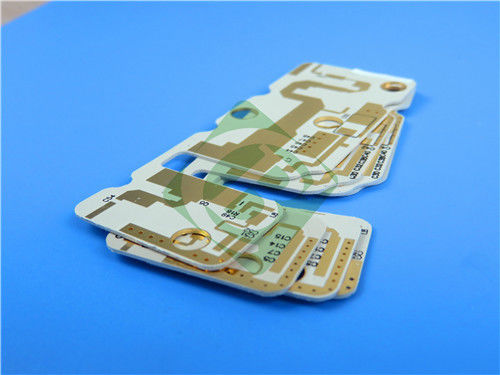

TRF-45 PCB 32mil 2-Layer RF Circuit Board ENIG Finish

TRF-45 PCB 32mil 2-Layer RF Circuit Board ENIG Finish

MOQ: 1PCS
価格: USD9.99-99.99/PCS
標準パッケージ: Vacuum bags+Cartons
配達期間: 8-9 working days
決済方法: T/T
供給能力: 5000PCS per month
詳細情報
Place of Origin
China
ブランド名
Bicheng
証明
UL, ISO9001, IATF16949
PCB material:
TRF-45
Layer count:
Double sided
PCB thickness:
0.9mm
PCB size:
50mm x 50 mm=1PCS, +/- 0.15mm
Copper weight:
1oz (1.4 mils) outer layers
Solder mask:
No
Silkscreen:
No
Surface finish:
Electroless Nickel Immersion Gold (ENIG)
ハイライト:

2-layer RF PCB board

,

ENIG finish PCB

,

32mil RF circuit board

製品説明

As the demand for high-performance electronics continues to rise, the need for advanced printed circuit boards (PCBs) that can meet stringent requirements has never been greater. Our newly shipped double-sided PCB, constructed from TRF-45 material, exemplifies this demand.



Material Composition: TRF-45

The TRF-45 laminated material represents a cutting-edge advancement in low-loss, thermally stable laminates. Developed by Taconic's Advanced Dielectric Division, TRF-45 is woven-glass reinforced, enhancing dimensional stability while maintaining a high degree of reliability in challenging environments. Its unique composition allows it to perform well across a wide temperature range, including soldering conditions, making it ideal for high-frequency applications.



Features
- Low-loss ceramic-filled PTFE
- Stable Dielectric constant (Dk) of 4.5±0.15 at 10GHz over temperature and frequency
- Dissipation factor of .0035 at 10GHz
- Moisture absorption of 0.06%
- X-axis CTE of 9 ppm/°C, Y-axis CTEof 9 ppm/°C, Z-axis CTE of 40 ppm/°C, 50°C to 150°C
- Thermal conductivity of 0.43 W/mk
- Flammability of UL 94-V0



PCB Specification

Parameter Specification
Base Material TRF-45
Layer Count Double Sided
Board Dimensions 50mm x 50mm ± 0.15mm
Minimum Trace/Space 4/5 mils
Minimum Hole Size 0.3mm
Blind Vias No
Finished Board Thickness 0.9mm
Finished Cu Weight 1oz (1.4 mils) for outer layers
Via Plating Thickness 20 μm
Surface Finish Electroless Nickel Immersion Gold (ENIG)
Top Silkscreen No
Bottom Silkscreen No
Top Solder Mask No
Bottom Solder Mask No
Electrical Testing 100% electrical test prior to shipment



PCB Stackup

The stackup design of this PCB is critical for its performance:



- Copper Layer 1: 35 μm

- TRF-45 Core: 0.813 mm (32 mils)

- Copper Layer 2: 35 μm



This arrangement ensures that the PCB maintains signal integrity and thermal stability, essential for high-frequency applications.



TRF-45 PCB 32mil 2-Layer RF Circuit Board ENIG Finish 0



Quality Assurance

Quality is paramount in PCB manufacturing, and this TRF-45 PCB adheres to IPC-Class-2 standards, ensuring reliable performance in a variety of applications. Each PCB undergoes a 100% electrical test prior to shipment, providing reassurance of its functionality and reliability.



Applications

The TRF-45 PCB is ideally suited for several high-tech applications, including:



- Satellite Radio Antennas: The PCB's low-loss characteristics and stable dielectric properties make it perfect for satellite communication, ensuring clear signal transmission and reception.

- RFID Antennas: With its robust design and excellent performance, this PCB is an excellent choice for RFID applications, facilitating efficient communication in tracking and identification systems.

- GPS Antennas: The TRF-45 PCB delivers precise location data, making it essential for navigation systems that require high accuracy and reliability.



Conclusion

The TRF-45 double-sided PCB is a cutting-edge solution tailored for high-performance applications within the electronics sector. With its advanced material characteristics, stringent quality standards, and compact design, it serves as a vital resource for manufacturers and designers alike. As we strive to innovate in electronic design, the TRF-45 PCB is well-equipped to tackle the demands of a rapidly changing technological environment. Whether utilized for satellite communications, RFID technology, or GPS systems, this PCB is engineered to provide outstanding performance and reliability.



TRF-45 PCB 32mil 2-Layer RF Circuit Board ENIG Finish 1
