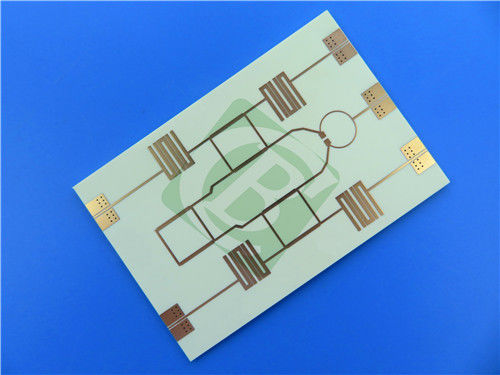

RO4533 2-Layer PCB 20mil Substrate Immersion Gold Finish

RO4533 2-Layer PCB 20mil Substrate Immersion Gold Finish

MOQ: 1PCS
価格: USD9.99-99.99/PCS
標準パッケージ: Vacuum bags+Cartons
配達期間: 8-9 working days
決済方法: T/T
供給能力: 5000PCS per month
詳細情報
Place of Origin
China
ブランド名
Bicheng
証明
UL, ISO9001, IATF16949
PCB material:
RO4533
Layer count:
2 layers
PCB thickness:
0.6mm
PCB size:
52mm x 35 mm=1PCS, +/- 0.15mm
Copper weight:
1oz (1.4 mils) outer layers
Solder mask:
Green
Silkscreen:
White
Surface finish:
Immersion Gold
ハイライト:

Rogers 2-layer PCB board

,

20mil substrate PCB

,

immersion gold finish PCB

製品説明

This PCB is a high-performance 2-layer printed circuit board made from advanced RO4533 material. It is engineered for precision and reliability, meeting stringent specifications to ensure controlled dielectric constant and low loss performance, making it ideal for mobile infrastructure and antenna applications.



PCB Stackup

The stackup of the PCB is structured as follows:



- Copper Layer 1: 35 μm

- Rogers 4533 Core: 0.508 mm (20 mil)

- Copper Layer 2: 35 μm



This configuration ensures optimal performance while maintaining structural integrity.



PCB specification

Parameter Specification
Base Material RO4533
Layer Count 2 Layers
Board Dimensions 52mm x 35mm ± 0.15mm
Minimum Trace/Space 4/7 mils
Minimum Hole Size 0.3mm
Blind Vias No
Finished Board Thickness 0.6mm
Finished Cu Weight 1oz (1.4 mils) outer layers
Via Plating Thickness 20 μm
Surface Finish Immersion Gold
Top Silkscreen White
Bottom Silkscreen No
Top Solder Mask Green
Bottom Solder Mask No
Electrical Testing 100% electrical test used prior to shipment



Artwork and Quality Standards

The PCB artwork is provided in the Gerber RS-274-X format, complying with IPC-Class-2 quality standards. This adherence ensures the PCB meets industry benchmarks for reliability and performance.



Global Availability

This high-performance PCB is available on a global scale, making it an ideal choice for various applications across multiple industries.



RO4533 2-Layer PCB 20mil Substrate Immersion Gold Finish 0



Introduction to RO4533

Rogers RO4533 laminates are known for their ceramic-filled, glass-reinforced hydrocarbon composition. They deliver controlled dielectric constants and low loss performance, crucial for microstrip antenna applications. Key features include:



- Dielectric Constant (Dk): 3.3 at 10GHz

- Dissipation Factor: 0.0025 at 10GHz

- Thermal Conductivity: 0.6 W/mK

- Glass Transition Temperature (Tg): >280°C



This material serves as an affordable alternative to traditional PTFE materials, allowing designers to optimize both cost and performance.



Benefits

The RO4533 material offers numerous advantages:



- Low loss and low dielectric constant suitable for a wide range of applications

- Compatibility with conventional PCB fabrication processes

- Excellent dimensional stability for higher yield on larger panels

- Uniform mechanical properties that maintain integrity during handling

- High thermal conductivity for enhanced power handling capabilities



Typical Applications

This 2-layer PCB is particularly suited for:



- Cellular infrastructure base station antennas

- WiMAX antenna networks



Conclusion

The 2-layer PCB utilizing RO4533 is engineered for high-performance applications, particularly in telecommunications and antenna technology. Its combination of advanced materials, rigorous quality standards, and global availability make it an excellent choice for modern electronic designs.
