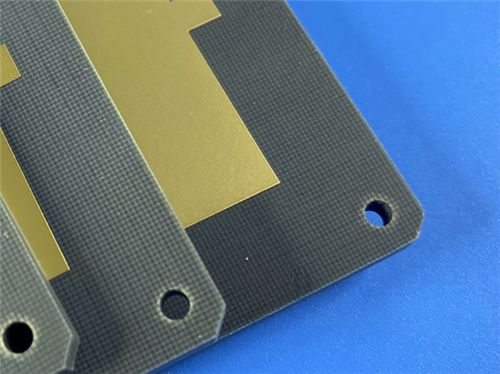

RF/Microwave F4BTMS450 PCB 4-Layer 1.4mm Thick

製品

金属の中心PCB

連絡ください

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

今連絡してください

RF/Microwave F4BTMS450 PCB 4-Layer 1.4mm Thick

MOQ:	1個
価格:	USD9.99-99.99
標準パッケージ:	真空バッグ+カートン
配達期間:	8-9営業日
決済方法:	T/T
供給能力:	1か月あたり5000pcs

起源の場所

ブランド名

Bicheng

UL, ISO9001, IATF16949

モデル番号

BIC-332.V1.0

基本材料:

F4BTMS450

レイヤーカウント:

PCBの厚さ:

1.4mm

プリント基板のサイズ:

1個あたり20mm×20mm（公差：±0.15mm）

シルクスクリーン:

はんだマスク:

1オンス (1.4ミル/35μm)

表面仕上げ:

浸漬ゴールド

ハイライト:

RF PCB board 4-layer design

Microwave PCB 1.4mm thickness

F4BTMS450 RF PCB board

製品説明

RF/Microwave F4BTMS450 PCB 4-Layer 1.4mm Thick

This 4-layer rigid PCB uses aerospace-grade F4BTM450 material to deliver superior electrical, thermal, and mechanical performance for high-frequency, mission-critical systems. Meeting IPC-Class-2 standards, it provides a high-reliability solution for aerospace, microwave, and military applications and serves as a competitive alternative to premium imported options.

PCB Specification

Parameter	Specification
Base Material	F4BTMS450 (advanced PTFE-nano-ceramic composite)
Layer Configuration	4-layer rigid PCB
Board Dimensions	20mm x 20mm per unit (tolerance: ±0.15mm)
Finished Board Thickness	1.4mm
Copper Weight (Finished)	1oz (1.4 mils / 35μm)
Via Plating Thickness	20μm
Minimum Trace/Space	4 mils / 5 mils
Minimum Hole Size	0.3mm
Vias	4 total (no blind vias)
Surface Finish	Immersion Gold
Silkscreen	Top: No; Bottom: No
Solder Mask	Top: No; Bottom: No
Quality Assurance	100% Electrical test prior to shipment

Precise PCB Stack-up

Copper Layer 1: 35μm (1oz)
F4BTMS450 Core: 0.127mm (5mil)
Copper Layer 2: 35μm (1oz)
Prepreg RO4450F: 0.102mm (4mil)
F4BTMS450 Core: 0.127mm (5mil)
Copper Layer 3: 35μm (1oz)
Prepreg RO4450F: 0.102mm (4mil)
F4BTMS450 Core: 0.762mm (30mil)
Copper Layer 4: 35μm (1oz)

F4BTMS450 Material Advantages

F4BTMS450 is an upgraded iteration of the F4BTM series, featuring a breakthrough formulation of polytetrafluoroethylene (PTFE) resin, ultra-thin/ultra-fine glass fiber cloth, and uniformly distributed special nano-ceramics. Key benefits include:

Minimized electromagnetic wave propagation interference from glass fibers, reducing dielectric loss.
Enhanced dimensional stability and reduced X/Y/Z anisotropy, ensuring consistency across extreme conditions.
Extended usable frequency range, improved electrical strength, and superior thermal conductivity.
Low thermal expansion coefficient and stable dielectric temperature characteristics.
Standard RTF (Reverse Treat Foil) low-roughness copper foil, reducing conductor loss and delivering excellent peel strength (compatible with copper or aluminum bases).

F4BTMS450 Key Electrical & Mechanical Properties

Property	Specification
Dielectric Constant (Dk)	4.5 ±0.09 (10GHz)
Dissipation Factor (Df)	0.0015 (10GHz); 0.0019 (20GHz)
Coefficient of Thermal Expansion (CTE)	X-axis: 12 ppm/°C; Y-axis: 12 ppm/°C; Z-axis: 45 ppm/°C (-55°C to 288°C)
Thermal Coefficient of Dk	-58 ppm/°C (-55°C to 150°C)
Flame Rating	UL-94 V0
Thermal Conductivity	0.64 W/MK
Moisture Absorption	0.08% (max)

Typical Applications

This PCB is ideal for demanding environments and high-performance systems, including:

Aerospace equipment, space vehicles, and cabin systems
Microwave and RF (Radio Frequency) devices
Military radar and general radar systems
Feed networks for high-frequency applications
Phase-sensitive antennas and phased array antennas
Satellite communications systems
Other mission-critical electronics requiring stable performance under extreme temperatures and conditions.
