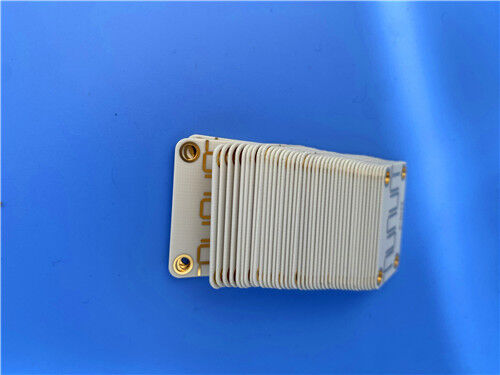

2-layer AD300D PCB 40mil Thick with EPIG Finish

2-layer AD300D PCB 40mil Thick with EPIG Finish

MOQ: 1個
価格: USD9.99-99.99
標準パッケージ: 真空袋+カートン
配達期間: 8~9営業日
決済方法: T/T
供給能力: 5000PCS/月
詳細情報
起源の場所
中国
ブランド名
Bicheng
証明
UL, ISO9001, IATF16949
モデル番号
BIC-200.V1.0
基材:
AD300D
レイヤー数:
両面
プリント基板の厚さ:
1.2mm
プリント基板サイズ:
ユニットあたり 67mm x 102.6mm、+/- 0.15mm
銅の重量:
1オンス
表面仕上げ:
EPIG(ニッケルフリー)
ハイライト:

2-layer RF PCB board

,

40mil thick PCB board

,

EPIG finish PCB board

製品説明

This double-sided PCB utilizes AD300D as its core substrate and incorporates an EPIG (nickel-free) surface finish. Configured with 1oz (1.4 mils) copper cladding on the outer layers, a finished board thickness of 1.2mm, and 20 μm via plating, the PCB delivers consistent electrical performance and high-precision manufacturing uniformity, making it highly suitable for applications including cellular infrastructure base station antennas, automotive telematics antenna systems, and commercial satellite radio antennas.



PCB Construction Details

Specifications Details
Base material AD300D
Layer count Double sided PCB
Board dimensions 67mm x 102.6mm per unit, +/- 0.15mm
Minimum Trace/Space 4/6 mils
Minimum Hole Size 0.4mm
Blind vias / buried vias No Blind vias
Finished board thickness 1.2mm
Finished Cu weight 1 oz (1.4 mils) on outer layers
Via plating thickness 20 μm
Surface finish EPIG (nickel free)
Top Silkscreen No
Bottom Silkscreen No
Top Solder Mask No
Bottom Solder Mask No
Quality control 100% Electrical test used prior to shipment



PCB Stack-up

Stack-up Layer Specification
Copper_layer_1 35 μm
AD300D Core 1.016 mm (40mil)
Copper_layer_2 35 μm



Artwork Type

The artwork provided for PCB fabrication adheres to the Gerber RS-274-X standard, the industry-accepted protocol for transmitting PCB manufacturing data.



Quality Standard

This PCB complies with the IPC-Class-2 standard, a widely recognized industry benchmark for printed circuit boards. The IPC-Class-2 standard establishes parameters for PCB quality, performance, and reliability, rendering it suitable for the majority of commercial and industrial applications requiring consistent operation and moderate dependability.



Global Availability

This PCB is available for global supply. We provide reliable logistics and shipping services to ensure the timely delivery of products to clients across various countries and regions, with the capability to accommodate the requirements of both small-batch and large-volume orders.



Introduction to AD300D Base Material

AD300D laminates are ceramic-filled, glass-reinforced PTFE-based materials engineered to offer a controlled dielectric constant, low loss performance, and excellent passive intermodulation (PIM) performance. Manufactured to meet the demands of today’s wireless antenna markets, this PTFE resin-based material is compatible with standard PTFE fabrication processes and provides a cost-effective construction that enhances both electrical and mechanical performance.



2-layer AD300D PCB 40mil Thick with EPIG Finish 0



Key Features of AD300D

Key Features Specifications
Dielectric Constant (Dk) 2.94 at 10GHz/23°C
Dissipation Factor 0.0021 at 10GHz/23°C
Coefficient of Thermal Expansion (CTE) 24 ppm/°C (X-axis), 23 ppm/°C (Y-axis), 98 ppm/°C (Z-axis) (-55 to 288°C)
Thermal Coefficient of Dielectric Constant -73 ppm/°C
Flame Retardant Rating UL 94 V-0



Benefits

  • Low loss tangent (<0.002 at 10 GHz)
  • Excellent circuit performance in all typical wireless frequency bands
  • Controlled dielectric constant (±0.05) for repeatable circuit performance
  • Very low PIM (-159 dBc at 30 mil, 1900 MHz), ensuring excellent antenna performance and reduced yield loss due to PIM-related issues
  • Excellent dimensional stability, enabling repeatable circuit performance and improved manufacturing yields



Typical Applications

  • Cellular infrastructure base station antenna
  • Automotive telematics antenna Systems
  • Commercial satellite radio antenna



Conclusion

This PCB is tailored for professionals, research and development (R&D) institutions, and technology enterprises engaged in the development and manufacturing of cellular infrastructure base station antennas, automotive telematics antenna systems, and commercial satellite radio antennas. Leveraging the high-performance AD300D substrate, this PCB serves as a reliable and high-quality solution for high-demand wireless applications requiring stable electrical performance, low loss, and excellent PIM performance.
